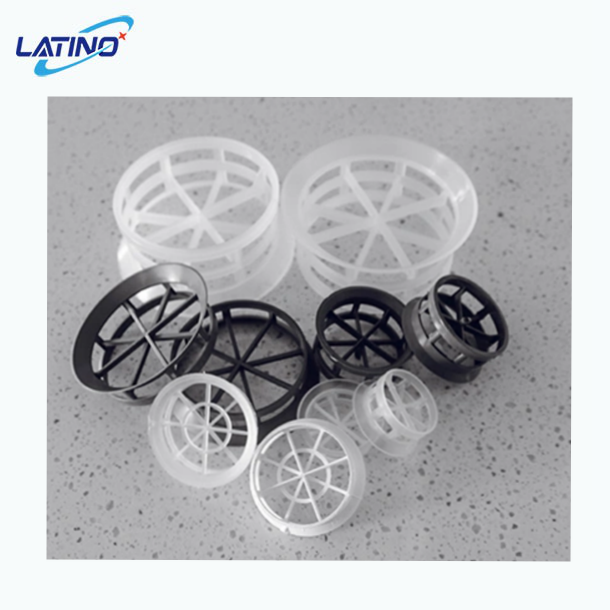

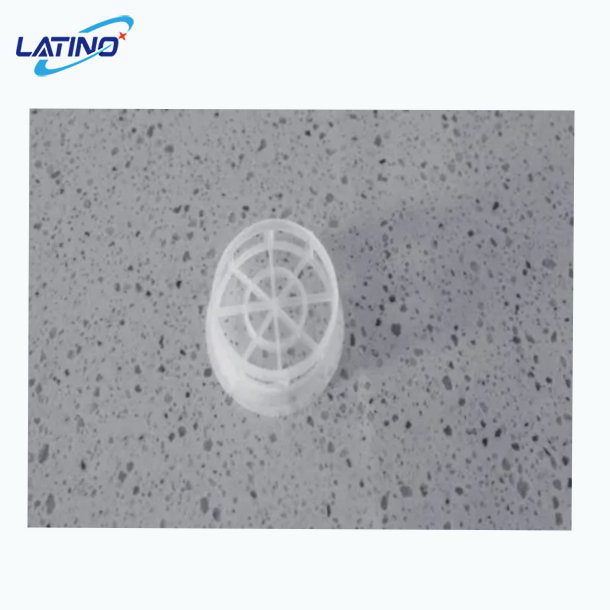

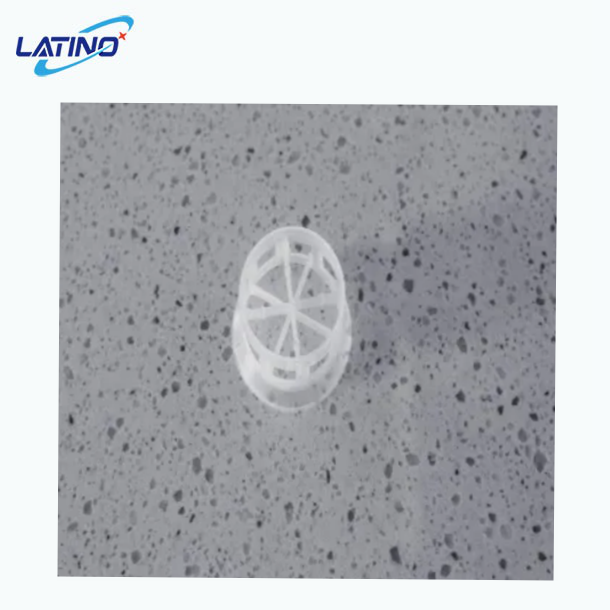

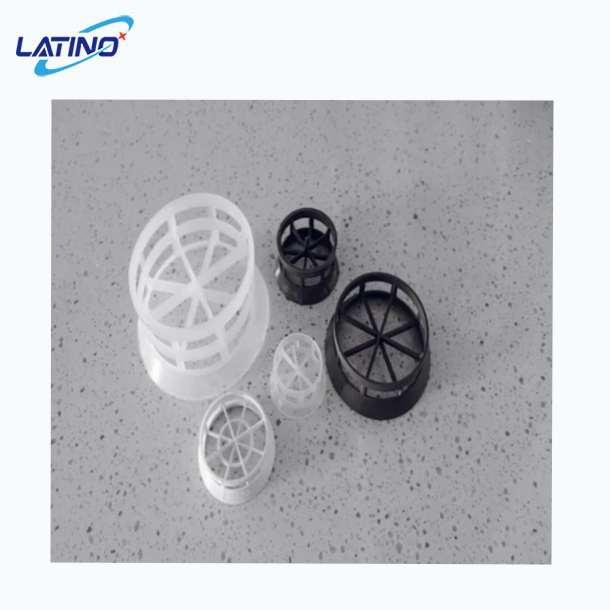

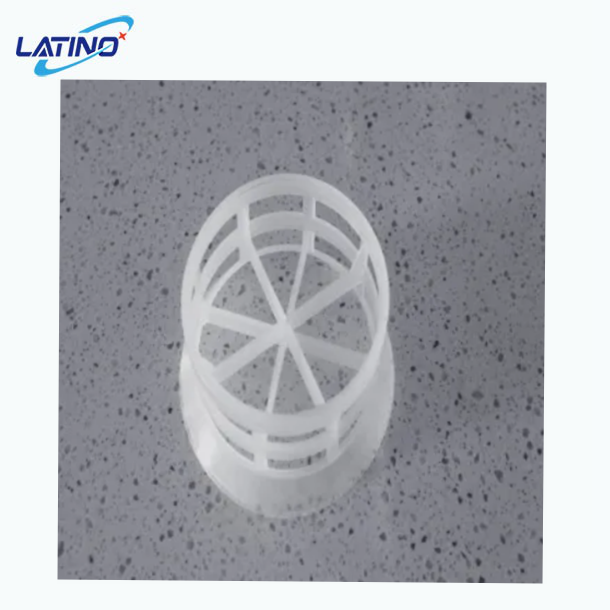

Cascade Mini-ring
Cascade Mini-ring added cone-shaped flanging at one edge. So it reduced the resistance when air pass through bed layer, and increased voidage. The height/diameter ratio of the plastic cascade ring packing is 0.5 which is only half that of the known plastic packing Pall Ring, Plastic Cascade Mini Ring can be installed in a tower that tends to orient in a more structured way such that its inner surface could be more efficient.
- Latino
- China
- 1 week
- 500 m3/month
- Information
- Video
- Download
Cascade Mini-ring
Cascade Mini-ring added cone-shaped flanging at one edge. So it reduced the resistance when air pass through bed layer, and increased voidage. The height/diameter ratio of the plastic cascade ring packing is 0.5 which is only half that of the known plastic packing Pall Ring, Plastic Cascade Mini Ring can be installed in a tower that tends to orient in a more structured way such that its inner surface could be more efficient.
16, 25, 38, 50, 76 mm
Advantages
1. High Capacity and Low Pressure Drop
2. Low aspect ratio increases capacity and reduces pressure drop. The preferred vertical orientation of the packing axes allows free gas flow through the packed bed.
3. Low pressure drop and high capacity allows smaller column diameter and blower sizes in new installations.
4. Multiple sizes provide ability to optimize capacity and efficiency based on application requirements.
5. Open structure and preferred vertical axis orientation inhibits fouling by allowing solids to be more easily flushed through the bed by the liquid.
6. Ring and spoke construction and preferred vertical orientation provide high mechanical strength, which allows use in deep beds.
7. Efficient gas - liquid contact due to diameter height ratio of 1:3.
8. Uniform liquid distribution, Effective voidage.
| D×H×δ mm | Specific area m2/m3 | Void rate % | Bulk number Pieces/m³ | Bulk density Kg/m³ | Dry packing factor m-1 |
| 16×8.9×1 | 370 | 0.85 | 299136 | 135.6 | 602.6 |
| 25×12.5×1.2 | 228 | 0.90 | 81500 | 97.8 | 312.8 |
| 38×19×1.2 | 132.5 | 0.91 | 27200 | 57.5 | 175.8 |
| 50×25×1.5 | 114.2 | 0.927 | 10740 | 54.8 | 143.1 |
| 76×37×2.6 | 90 | 0.929 | 3420 | 68.4 | 112.3 |
Tianjin LATINO Environmental Technology Co., Ltd. are on the base of high quality, good service, we win good reputation in the industry. We help our customers better to get cooling tower products from China.We specializes in manufacturing various cooling tower and parts. Our company's cooling tower products is being used widely around the world. Our business involve in Italy, Germany, Australia, UK, Indonesia, Thailand, Belgium, France, Poland, India, Malaysia, Singapore and New Zealand, etc..
Latino has a high quality team of talents. Team members are young and energetic, with a sense of innovation and the courage to meet the challenge.Team members develop and practice new e-marketing mode, follow consumer demand, provide customers with high quality products and services.
LATINO has an experienced team in quality and project implement to support the purchasing activities of overseas customers;The company's main products are cooling tower parts, such as Film Fill, drift eliminator and spray system, UPVC distribution pipes, FPR winding splash pipe, FRP profile parts,FRP gratings, Fan stack, band & clamp, etc.; Our product are approved by CTI and we have our own patent .
Our factory has the largest capacity and have been working with the recognized brands of cooling tower in around the world, our team have rich experience in oversea projects.we were your colleague, knowing your care, your culture and your requirements.So we make it easy for you to purchase high quality and good value internal plastic parts of cooling tower in China.
Our fill has been verified by actual operation for more than ten years. It is very reliable and efficient. You can rely on us to deliver a successful project while reducing your total project costs!
