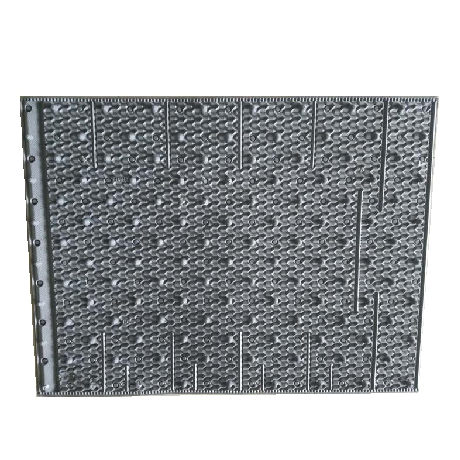

Crossflow Cooling Tower PVC Fill Material
Crossflow Cooling Tower PVC Fill Material plays a crucial role in improving the lifespan of the cross flow cooling tower. It also could increases the water flow process remarkably for better performance and efficiency as well.
This Crossflow Cooling Tower PVC Fill Materialis glued together by A type and B type sheets to be a block which is stalled in tower.
This PVC fill use the modified PVC sheet and is manufactured with a unique modified formula to enable strong resistance and guarantee its durability. It involves special processing whereby the inner side edge is integrated with a liquid baffle plate which controls the drift loss of water.
- LATINO
- China
- 15 DAYS
- 500 M3/DAY
- Information
- Video
- Download
Crossflow Cooling Tower PVC Fill Material
Cooling Tower Fill provides sheets of material that are shaped into a corrugated pattern for the water to travel across. It can be combined and stacked into blocks, to create various thicknesses and heights to fit individual cooling towers.
The largest disadvantage of film fill is that it doesn’t provide an opportunity for the water to redistribute itself. The initial water distribution at the top of the fill must be uniform, or the process won’t work well. The close spacing created by the narrow passages of film fill also makes film fill more challenging to maintain. If the water includes large debris like leaves, the fill is prone to clogging.
| Cross Flow Cooling Tower PVC fill Material | |||||
| Length | Width | Sheet thickness | Pitch Distance | Material | Color |
| 1270mm/950MM | 950mm | 0.30mm to 0.60mm | 20mm | PVC | Gray,Black |
Advantages:
. Using modified PVC sheet, unique modified formula makes the infill strong resistance and high durability.
. Vac form special processing, the inner side (fan side) edge with integrated liquid baffle plate, and controls the drift loss of water in minimum value, and maximize the heat exchange performance of the water and air.
. Standard heat temperature of 50 ° C, heatproof specification (optional) can use up to 80 ° C
Uses PVC material to guarantee longer lifespan
Easy maintenance
high temperatures resistant
Industrial cooling tower
SHINWA cooling tower
Relevant Cooling Tower Components:
1. Provide the inspection and expediting service if you’re also purchasing other items in China at the same time;
2. Special packaging design and loading optimization,if needed;
3. LATINO can also help customers to provide quality cost-effective sourcing agency service in dry cooling area and wet cooling area;
4. Quality guarantee is 12 months;
